Controls

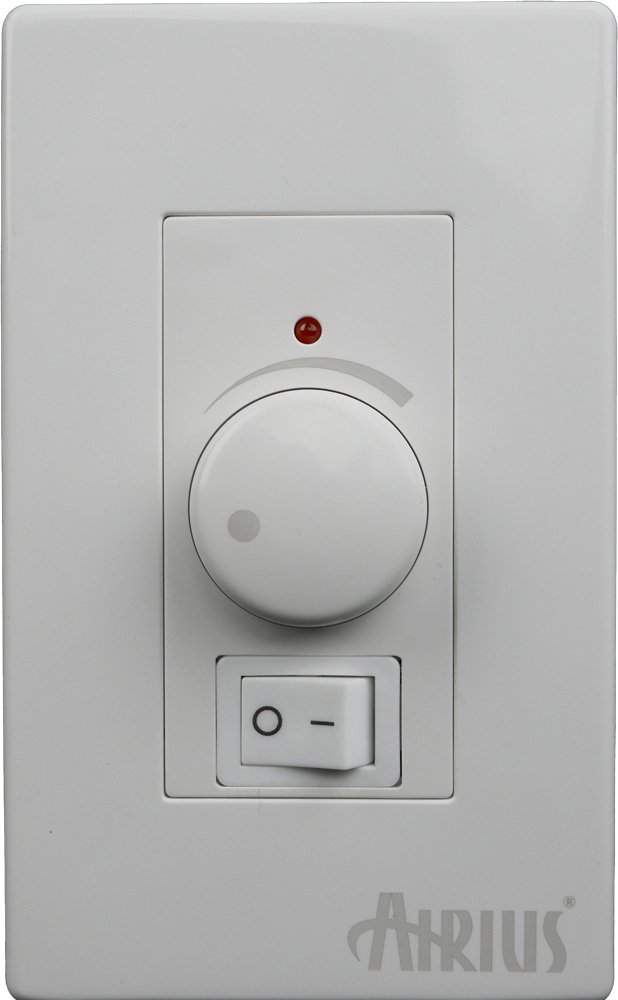

SPEED CONTROL, POTENTIOMETER
The control mounts in a standard 2″ x 4″ electrical wall box. Includes faceplate, knob and screws. Do not exceed 1000 ft. of control wire.
- Push Button On/Off – Infinitely variable speed settings.
- Compatible with EC motors.
- One year parts and workmanship.
- Part number: POT-1
BACNET MS/TP FAN CONTROL
Individual Airius fan control and status integration over BACnet MS/TP. Up to 63 fans per BACnet MS/TP network. One AiriusBAC24 device required per fan.
- On/off, fan speed control and rpm monitoring.
- Compatible with EC motors.
- Three year parts and workmanship.
- Part number: AiriusBAC24
PEARLINK WIFI CONTROL
Integrate with an existing WiFi network to provide wireless connectivity for monitoring stratification levels and individual or grouped fan control. Each installation will include a floor sensor to be installed 48 in. A.F.F.
- Closed loop fan control. Adjust fan speed and monitor actual rpm.
- Compatible with EC motors.
- One year parts and workmanship.
- 2.4 Ghz network required
- iOS and Android app available for free
- Recommended for smaller installations up to ~20 fans

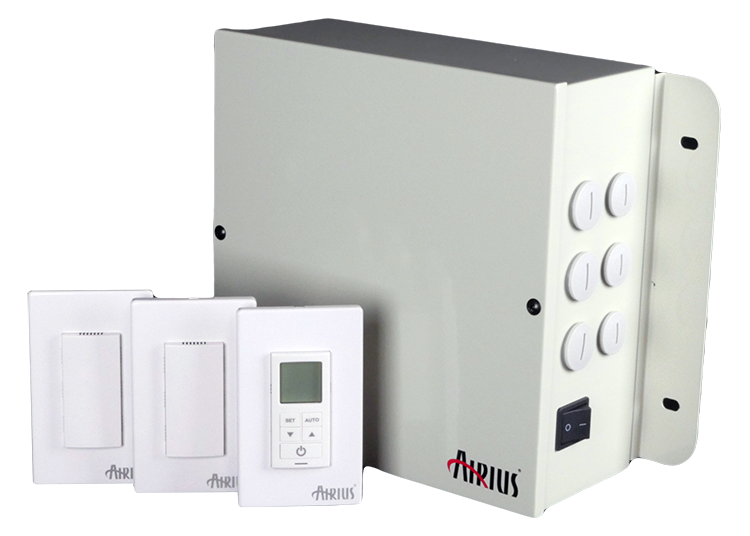

AIRIUS DELTA-T FAN CONTROL
The Airius DeltaT controls allow for 6 modes of quiet speed control by utilizing an autotransformer to eliminate the hum often associated with TRIAC type controls. Packages available for AC or EC motor options.
- DeltaT control – Dynamic speed control driven by the differential between temperature sensors.
- BAS integration – 0-10VDC control input for controlling fan speed across 8 speed steps.
- Thermostat control – When the temperature reaches a set-point, the fans energize to a set speed.
- Humidistat control– When RH reaches a user defined threshold, the fans energize to a set speed.
- Manual control – User control will override any automatic mode with 8 manual speed steps.
- 24hr timer – Set fans to turn on and off at a set time every day.
SPEED CONTROL, 120V, 1.5 AMP
This quiet step speed control includes circuitry to reduce noise. The control mounts in a standard 2″ x 4″ electrical wall box. Includes faceplate, knob, screws and wire nuts. Total fan amperage should not exceed the speed control amperage rating.
- Off – Max – Hi – Medium – Low speed settings.
- Compatible with shaded pole or permanent split capacitor motors.
- Special circuitry to reduce motor noise.
- One year parts and workmanship.
- Part number: TRIAC-120-1.5
SPEED CONTROL, 120V, 6 AMP
The control mounts in a standard 2″ x 4″ electrical wall box. Includes faceplate, knob, screws and wire nuts. Total fan amperage should not exceed the speed control amperage rating.
- Off – Infinitely variable speed settings.
- Compatible with shaded pole or permanent split capacitor motors.
- Minimum speed set screw to adjust stall point.
- One year parts and workmanship.
- Part number: TRIAC-120-5
SPEED CONTROL, 120V, 15 AMP
The control mounts in a standard 2″ x 4″ electrical wall box. Includes faceplate, knob, screws and wire nuts. Total fan amperage should not exceed the speed control amperage rating.
- Off – Infinitely variable speed settings.
- Compatible with shaded pole or permanent split capacitor motors.
- Minimum speed set screw to adjust stall point.
- One year parts and workmanship.
- Part number: TRIAC-120-15
SPEED CONTROL, 230V, 8 AMP
The control mounts in a standard 2″ x 4″ electrical wall box. Includes faceplate, knob, screws and wire nuts. Total fan amperage should not exceed the speed control amperage rating.
- Off – Infinitely variable speed settings.
- Compatible with shaded pole or permanent split capacitor motors.
- Minimum speed set screw to adjust stall point.
- One year parts and workmanship.
- Part number: TRIAC-230-8
SPEED CONTROL, 277V, 5 AMP
The control mounts in a standard 2″ x 4″ electrical wall box. Includes faceplate, knob, screws and wire nuts. Total fan amperage should not exceed the speed control amperage rating.
- Off – Infinitely variable speed settings.
- Compatible with shaded pole or permanent split capacitor motors.
- Minimum speed set screw to adjust stall point.
- One year parts and workmanship.
- Part number: TRIAC-277-5

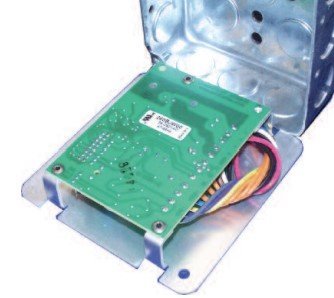

SPEED CONTROL, 95-250V, SMART TRIAC
Control the speed of all fans on a dedicated circuit. Control input via 4-20mA/2-10vdc, manually through a speed setting dipswitch, or automatically with ceiling and floor temperature sensors.
- Speed adjustment via 4-20mA/2-10vdc, fixed speed, or automatically with ceiling and floor temperature sensors
- Compatible with shaded pole or permanent split capacitor motors.
- Mounts in a standard 4” x 4” x 1.5” electrical job box.
- One year parts and workmanship.
- Part number: TRIAC-SMART-7.5 or TRIAC-SMART-7.5-AUTO

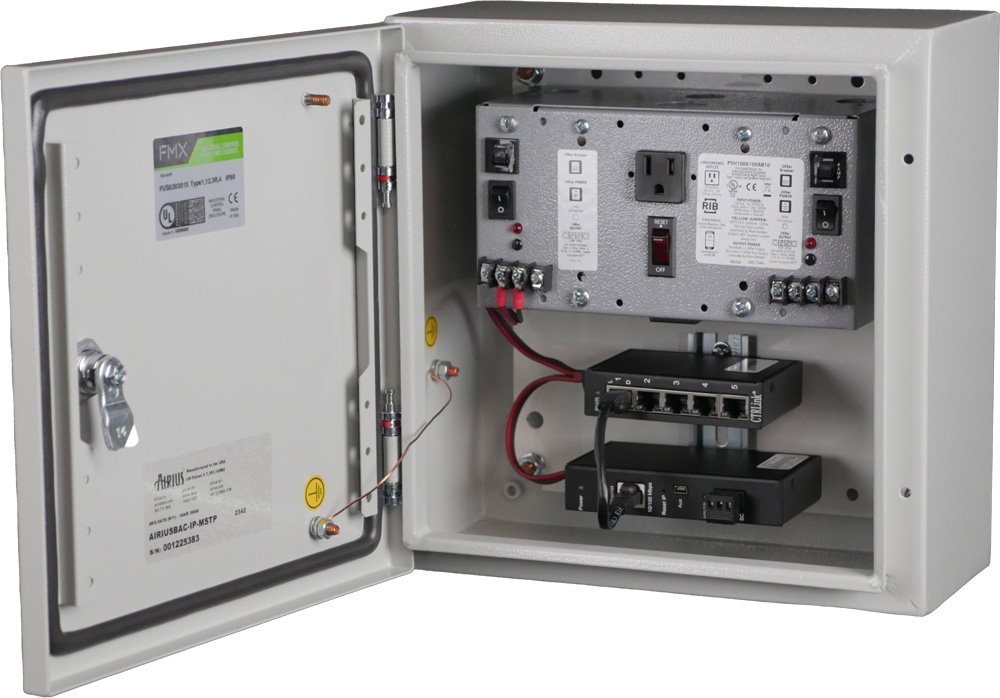

BACnet IP to MS/TP Networking Panel
The BACnet multi-network router panel provides versatile stand-alone routing between BACnet/IP, BACnet Ethernet, and BACnet MS/TP networks.
- Includes a 24VAC power supply, network switch and BACnet router for integration of AiriusBAC24 BACnet cards.
- Maximum of 63 AiriusBAC24 devices per BACnet MS/TP network.
- Up to 26 AiriusBAC24 devices can be powered by the included power supply. For networks using more than 26 fans additional power supplies are needed.
- PSC100AB10: Enclosed Single 100 VA Power Supply, 120 to 24 Vac Can power up to 26 additional AiriusBAC24 Devices.
- Part number: AiriusBAC-IP-MSTP
