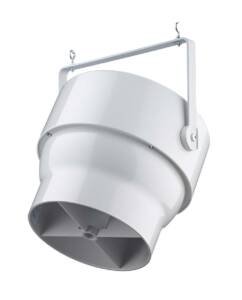

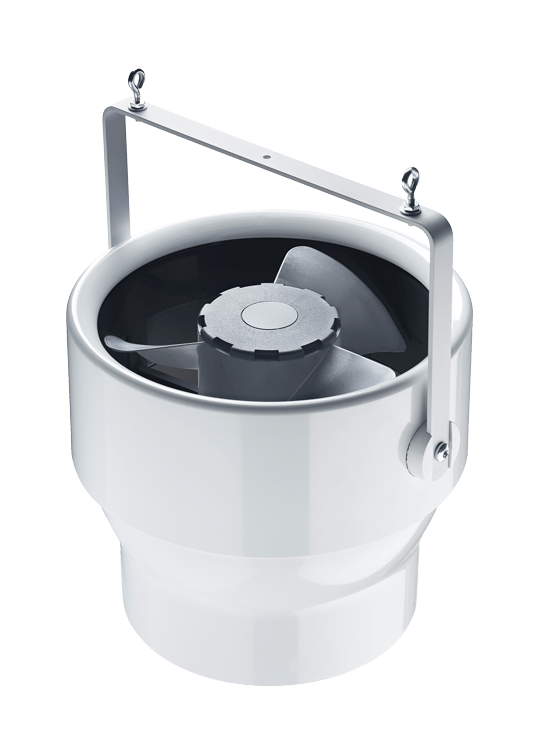

PEARL SERIES
Good things come in small packages. That idea sparked the development of the Pearl, our smallest form factor destratification fan to date.
- Comfort goes up
- Energy cost goes down
- Quick and easy installation in new construction or retrofits
THE AIRIUS PEARL FANS CAN HELP TO:
INCREASE COMFORT
REDUCE ENERGY COSTS
FIT TIGHT SPACES
Increase comfort in
dealerships |
athletic facilities |
schools |
gyms |
government facilities |
worship facilities |
warehouses
…and save on HVAC energy costs with a destratification fan system from Airius.
FEATURES & OPTIONS
Complete with a 6-foot cord and plug for 120V fans, installing a Pearl Series fan is quick and easy. Mount an electrical j-box/receptacle near the intended fan location and use one of the recommended mounting methods to hang the fan from the supplied eyebolts. Additional low voltage wiring may need to be installed for control of an EC motor or eliminated with a wireless control option.
Our standard AC motors are a great option to keep things simple. Controls for these types of motors are installed in-line with the power circuit feeding the fans. Several control types are available, from simple wall mounted controls to our Smart TRIAC that can adjust speed using: dip switches for fixed speed, 2-20mA current, 0-10VDC, or high and low temperature sensors that adjust fan speed based on the temperature difference. Please see the following information sheets for specific details.
Our premium EC motors, made by ebm-papst®, are a great option for maximum efficiency and controllability. EC fans maintain higher efficiency across the entire speed range when compared to traditional AC motors. EC fans can be controlled through a direct 0-10VDC wired connection, using our Pearlink Wi-Fi based app, using our Delta-T controller, or integrated into an existing automation system over BACnet MS/TP.
All fans using the 45 sized housing and larger come standard with an intake grille. For smaller models, the intake grille is optional. We recommend the grille option for fans that are mounted within reach of an occupant. If mounted out of reach, we suggest leaving the intake open to maximize airflow and to keep the noise level low. Specific fan model submittals will show the guard as an option if available.
Pearl Series fans are available in three standard colors: Off white (Cool gray 2C) or black. Custom colors will be considered for large bulk purchases. Contact Airius for further details. If you need small quantities of fans with custom colors, look at our Designer Series fans.
Technical documentation
STANDARD AC MOTORS
PREMIUM EC MOTORS
INSTALLATION & WARRANTY
BIM & GUIDE SPECIFICATIONS
Case STudies
WARRANTY AND REFURBISHMENT
Full warranty details can be found under the technical downloads section.
